OPT-PANEL
LED DISPLAYS

The Opt-Panel is an ultra HD LED display module supporting 1080p, and 4K+ resolution.
State-of-the-art LED technology with sophisticated calibration, together with seamless,
precision engineered cabinets, create our most unforgettable LED displays ever.

An LED Sign so HD it looks 3D.

The Opt-Panel’s high resolution modules create hyper-real visuals.

Ultra-high Resolution Indoor Digital LED Sign
Full HD, 4K, and Ultra HD Resolutions

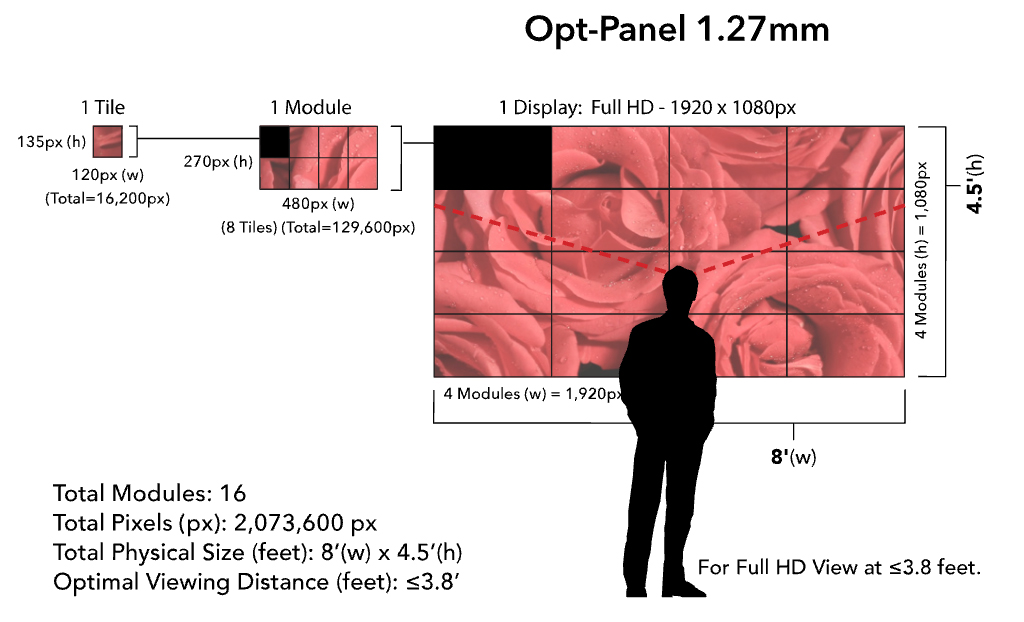

The Opt-Panel features a 16:9 cabinet design making it easy to build high-definition LED displays. To achieve Full HD (1920×1080) with a 1.27mm pixel pitch Opt-Panel module, the LED display would be 8 feet wide by 4.5 feet high and would need to be viewed from a distance of over 3 feet. Create a 4K display by adding a few more cabinets: 8 modules high by 8 modules wide. The display would feature a whopping 4,147,200 pixels and would be 16 feet wide by 9 feet high. The Opt-Panel makes ultra-high resolution, large-format, direct view LED a must see.
<img src="https://optec.com/wp-content/uploads/2021/08/opt_panel_ill.jpg" alt=" " style="float: middle; padding: 10px 5px 10px 10px; width:800px; height: auto;"

Bigger. Brighter. Bezel Free.
Optec indoor LED displays are modular in design. Add a single sign or build a video wall to engage and inform.

Questions? Need more information? Give us a call at 800.876.1668 and we’ll help you get started!

READ SPECS DOWNLOAD SPECS

Let's Get Started

It begins with the LED.

Cutting-edge technology creates unforgettable visual performance.
Optec selects only top quality diodes in terms of lumen, color, and efficiency. As the essential starting point in the design and engineering of all our displays, the LED bins we select and deliver are from the finest diode manufacturers in the world.

Opt-Panel LED tiles are calibrated and tested with specialized tools, by our highly-qualified engineers, to maximize visual performance, brightness, and efficiency. The Opt-Panel features a unique micro SMD LED surface and true black (no backlight), together with the LED tile’s black mask, they create high-contrast, eye-popping, hyperreal visuals. Optional coated LED tiles are available for high-traffic or close proximity installations.

Questions? Need more information? Give us a call at 800.876.1668 and we’ll help you get started!

READ SPECS DOWNLOAD SPECS

Let's Get Started!

Opt-Panel LED Display Pitch Options

Pixel pitch is the distance from the center of an LED cluster (or pixel) to the center of the next LED cluster/pixel -- measured in millimeters. The LED sign industry uses pixel pitch as a standard method of indicating the resolution of a digital display based on the spacing of LED clusters.

The smaller the number measuring pitch - the closer the LED pixels are to each other. A smaller pitch can display more details in the image creating exceptional image quality.

Optec's Opt-Panel LED displays are available in pixel pitches ranging from 2.66mm to 4.8mm.

Opt-Panel LED Display Pitch Options

Questions? Need more information? Give us a call at 800.876.1668 and we’ll help you get started!

READ SPECS DOWNLOAD SPECS

Let's Get Started!

LEDs are only half the story.

Designed for easy installation and service. Engineered for efficiency.

Cabinets and Components

Modular Foundation
Opt-Panel’s precision-engineered cabinet provides greater design flexibility. Combine different size modules to create small or large displays. Align and connect modules with adjustable pins, and latches to create a seamless display. Quick-connect cables make power and data connection fast and accurate. Each module features SMD LED tiles from the same bin preserving color and brightness uniformity.

Service
True Front Service
Quick release LED tiles allow for fast, easy true front service and module maintenance. Selectively release tiles for access to important components and cabling. Opt-Panel makes installation and service easy even for the most challenging environments.

Questions? Need more information? Give us a call at 800.876.1668 and we’ll help you get started!

READ SPECS DOWNLOAD SPECS

Let's Get Started!

LEDs are only half the story

Designed for easy installation and service. Engineered for efficiency

Cabinets & Components

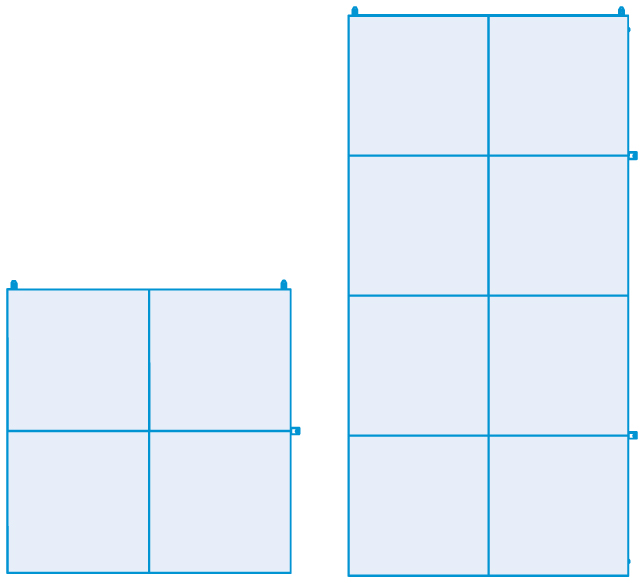

Modular Cabinets
The Opt-Panel’s modular cabinet provides greater design flexibility. Combine different size modules to create small or large displays. Align and connect modules with adjustable pins, and latches to create seamless displays.

Quick-connect cables make power and data connection fast and accurate. Each module features SMD LED tiles from the same bin preserving color and brightness uniformity.

Service

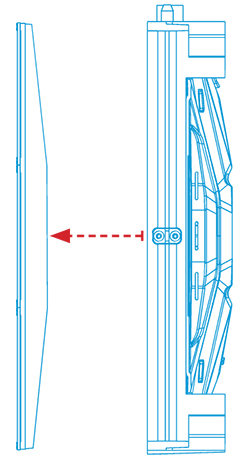

True Front Service

Quick release LED tiles allow for fast, easy true front or rear display installation and module maintenance. Selectively release tiles for access to important components and cabling. Opt-Panel makes installation and service easy even for the most challenging environments.

Questions? Need more information? Give us a call at 800.876.1668 and we’ll help you get started!

READ SPECS DOWNLOAD SPECS
